Relay N.S1-L-24-12.0.8

Main Features

Monostable electro-mechanical safety relay
Guided, weld resistant, no transfer contacts
Gravity drop out
Dual connector contact with gold plated AgCdO tabs
Operation guaranteed within the -25°C to +70°C temperature range

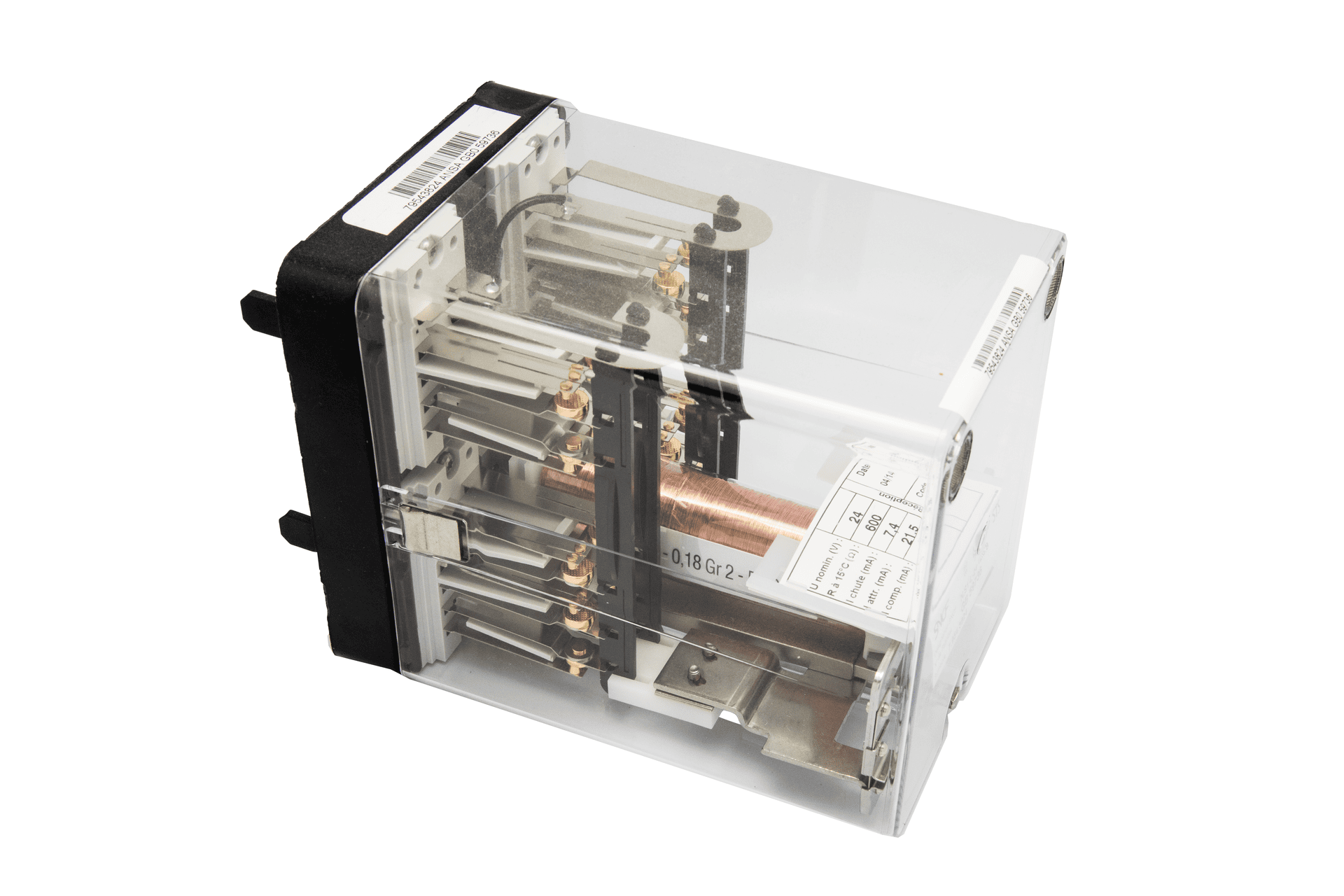

Relay N.S1-L-24-12.0.8

Relay N.S1-L-24-12.0.8 REF : 2230632B00 REF SY : 7.954.3824

Proven reliability and availability
Long life
Easy to install and maintain

The N.S1-L-24-12.0.8 relay is an electro-mechanical monostable 24V DC vital relay with gravity return in an N.S1 – 2 size package for automatic connection modules intended to perform uncontrolled vital functions in rail signaling installations. It is equipped with 8 guided normally closed idle contacts and 12 guided normally open operating contacts that are weld resistant under the usage conditions faced by NF 70-030.
