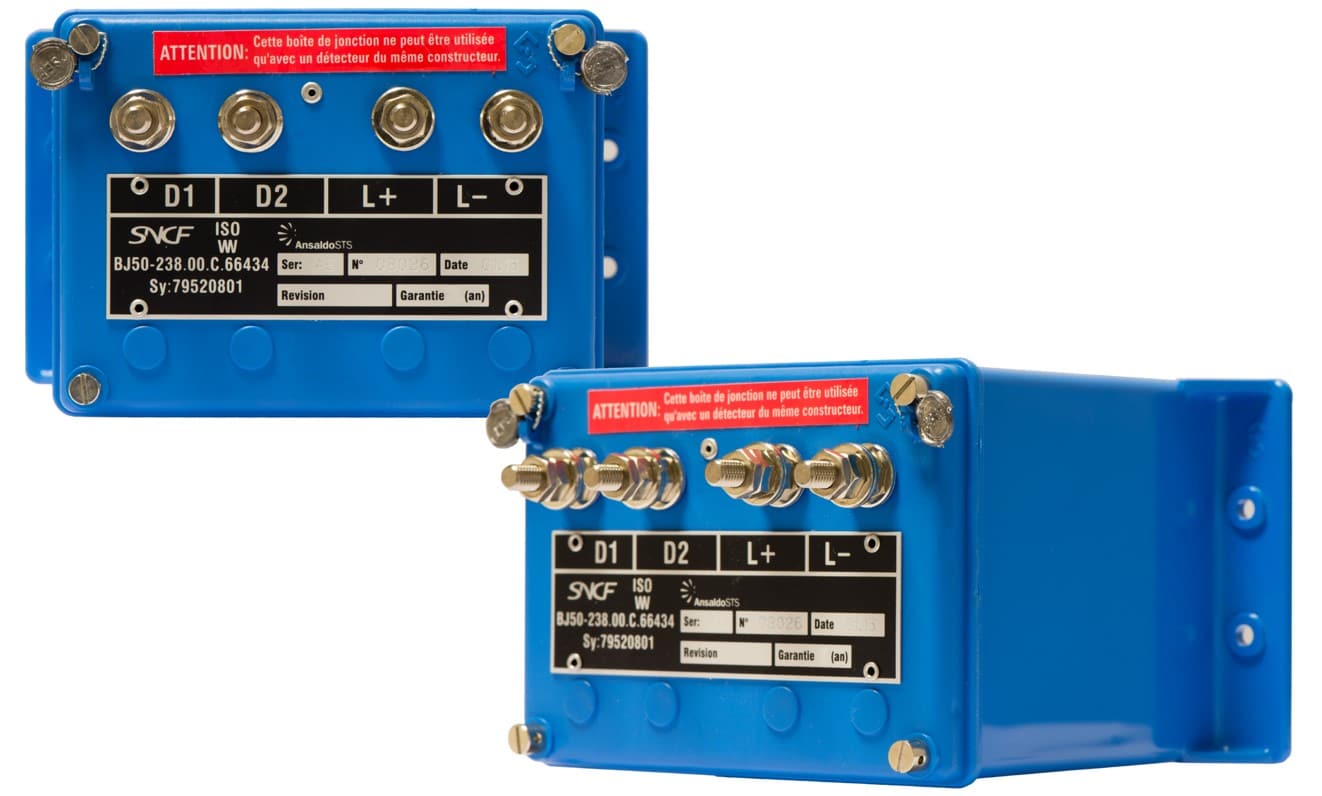

Junction box BJ50

Main Features



  • Power supply: DC 8.5V to 30V
  • Exposure from -30 to +70°C
  • Output voltage: 330mV eff +1-40 mV (over 100 dynamic ohms)
  • Frequency: 39 KHz or 50 KHz +/- 3%
  • Consumption: < 30 mA



Junction box BJ50
Electronic treadles

Junction box BJ50

Junction box BJ50 REF : 2066434 REF SY : 79520801
  • Boite fonctionnelle à plus de 360 km/h
  • Insensibles aux intempéries
  • Une faible maintenance du produit

Electronic treadles are intended to provide timely information on the passage of a train by detecting wheels on the track.

These devices control any function related to the passage of a train on the track including:

  • Crossing
  • Transit Interlocks
  • Route destruction
  • Needles in sorting
  • Axle counts
  • All function signals
